Authentication & IAM

RONL Business API uses Keycloak as its identity and access management layer, implementing the OIDC Authorization Code Flow. Every authenticated request carries a JWT access token, and every protected endpoint validates that token before doing anything else.

Authenticating

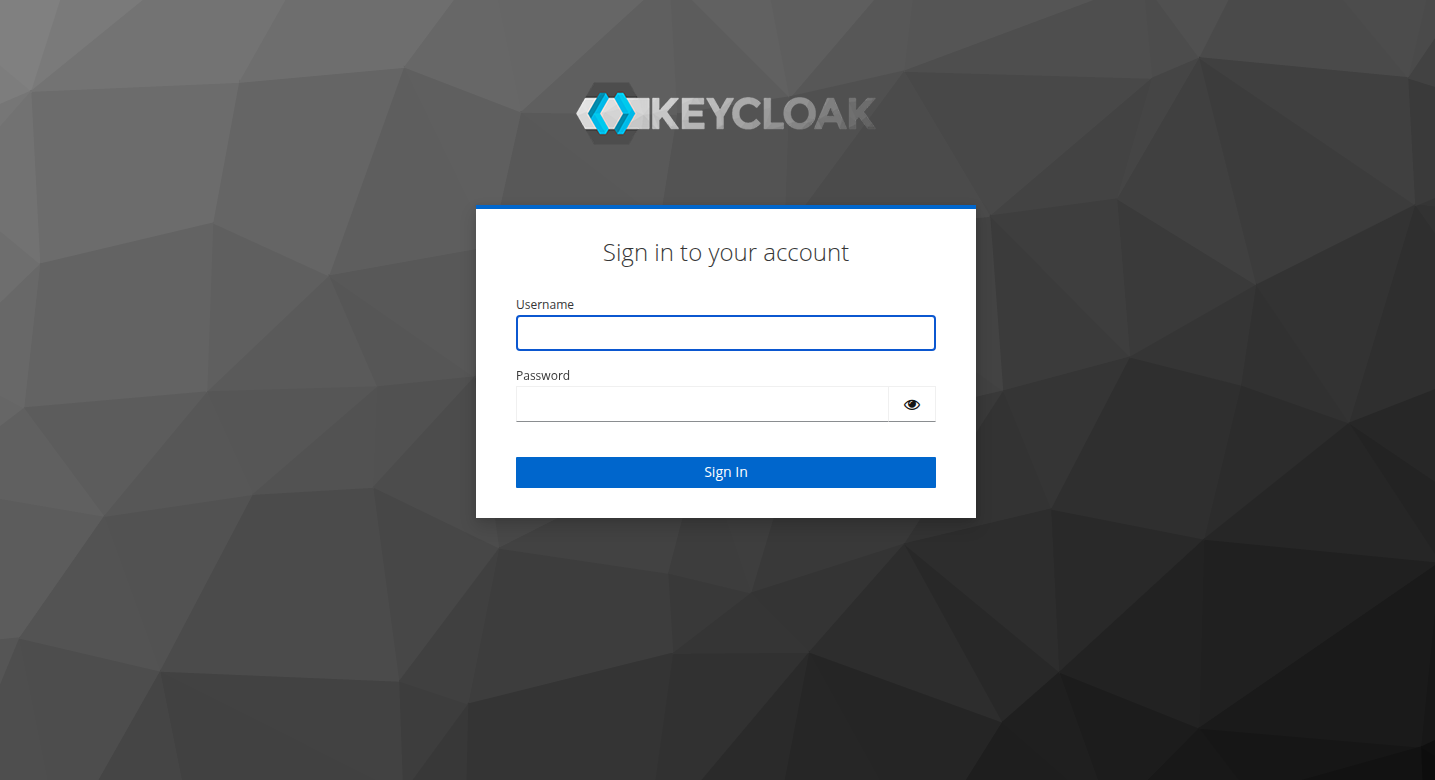

Keycloak is the only token issuer the Business API accepts. The frontend sends the browser to Keycloak's login, with an identity-provider hint when the user picked DigiD, eHerkenning or eIDAS on the login choice page:

  • A user can sign in directly against Keycloak, with credentials managed in Keycloak itself. This is how every account in the repository's realm export signs in.
  • Keycloak can act as an identity broker for an external provider: the browser is redirected to the provider, the provider returns a signed assertion, and Keycloak validates it and issues its own token. The realm export defines digid and eidas as SAML providers, both disabled and pointing at placeholder endpoints; it defines no eHerkenning provider. Where the hinted provider is not available, Keycloak shows its own login form.

Either way, the caller ends up with a Keycloak-issued JWT access token and presents it on every subsequent request as an Authorization: Bearer header.

Validating a token

Every request to a protected endpoint passes through JWT validation before any route handler runs:

  1. The Authorization: Bearer <token> header is extracted; a missing or malformed header is rejected with 401 MISSING_TOKEN.
  2. The signing key is fetched from Keycloak's JWKS endpoint, matched by the token's kid, and cached to avoid a lookup on every request.
  3. The signature is verified (RS256 only), and the token's exp, iss, and aud claims are checked against the configured issuer and audience.
  4. On success, the decoded claims are attached to the request as the authenticated caller's identity for every downstream check.

A token that fails any of these steps is rejected with 401 INVALID_TOKEN before it reaches a route handler.

Claims carried in the token

Beyond the standard OIDC claims, a token carries the attributes the platform relies on for authorization: the caller's identity, their tenant, their organisation type, their realm roles, and a level of assurance reflecting how strongly their identity was established. An optional mandate claim can express that the caller is acting on someone else's behalf, and where the caller is a member of staff, an employee identifier can be carried as well. See JWT Claims for the claim names and the Keycloak mappers that produce them.

Roles and authorization

A caller's roles are read from the token's realm_access.roles and checked against whatever a given endpoint requires: a route can require the caller to hold at least one of a set of roles, and a caller lacking all of them is rejected with 403 FORBIDDEN. The same roles decide which candidate groups a caller's task list covers — see Tasks — Visibility.

Two operations additionally require a minimum level of assurance, checked against the token's loa claim rather than its roles. The levels are ordered basis, midden, substantieel, hoog: evaluating a decision requires at least basis, and starting a process at least midden. A token below the required level, or carrying no recognised level at all, is rejected with 403 INSUFFICIENT_ASSURANCE.

Tenancy

Every authenticated caller carries a tenant identifier (the municipality claim) and an organisation type in their token. Tenancy decides which organisation's cases a signed-in caller can reach. The same mechanism applies whether a deployment serves one organisation or several.

The tenant must be present. On the process, task, decision, capacity, HR, RIP, ValidSign and policy-analysis routes, a tenant step runs after authentication and rejects a token that carries no tenant identifier with 403 MISSING_TENANT. ENABLE_TENANT_ISOLATION=false switches this presence check off; it does not switch off any of the checks below.

One label decides access. Every tenant decision on a process instance or task is made in one module, auth/tenant-access.ts, and reads one value: the instance's municipality process variable. Operaton's own tenant-id on the deployment is never compared against. The checks fail closed and answer the same way:

  • An instance with no municipality label is refused to every caller — an instance started outside this backend carries none.
  • Every tenant refusal is 403 TENANT_MISMATCH.

Starting a process stamps the label. The backend first resolves which tenant the process is deployed under (see Processes — Tenancy), then applies the start rule:

  • Deployed untenanted, or under the caller's own tenant: the case belongs to the caller's tenant.
  • Deployed under another tenant, caller is a citizen (holds the citizen realm role): the case goes to the deploying tenant, and originTenantId records the citizen's own tenant.
  • Deployed under another tenant, caller is anyone else: refused with 403 TENANT_MISMATCH, and no instance is created.

The stamped municipality always comes from this rule, never from the request body. The start also records the caller as applicantId and initiator, with their organisation type and assurance level. The business key is kept as the caller supplied it; otherwise it is minted as <owning organisation>-<timestamp>. It grants nothing — access runs on municipality.

Reading and acting on an instance follows the owning organisation:

  • The five process reads — status, variables, historic variables, activity history and decision document — are allowed to the owning tenant, or to the case's own applicant (the caller whose user id matches applicantId). A citizen whose case went to another tenant's deployment can therefore still follow it.
  • Cancelling an instance (DELETE) and every task operation are allowed to the owning tenant only.

The label cannot be rewritten. municipality, originTenantId and applicantId are reserved: a user task completion that includes any of them is refused with 400 RESERVED_VARIABLE before anything reaches Operaton. The machine-to-machine routes under /v1/m2m are trusted system actors: they run without the tenant step, and their completion route does not apply this check.
